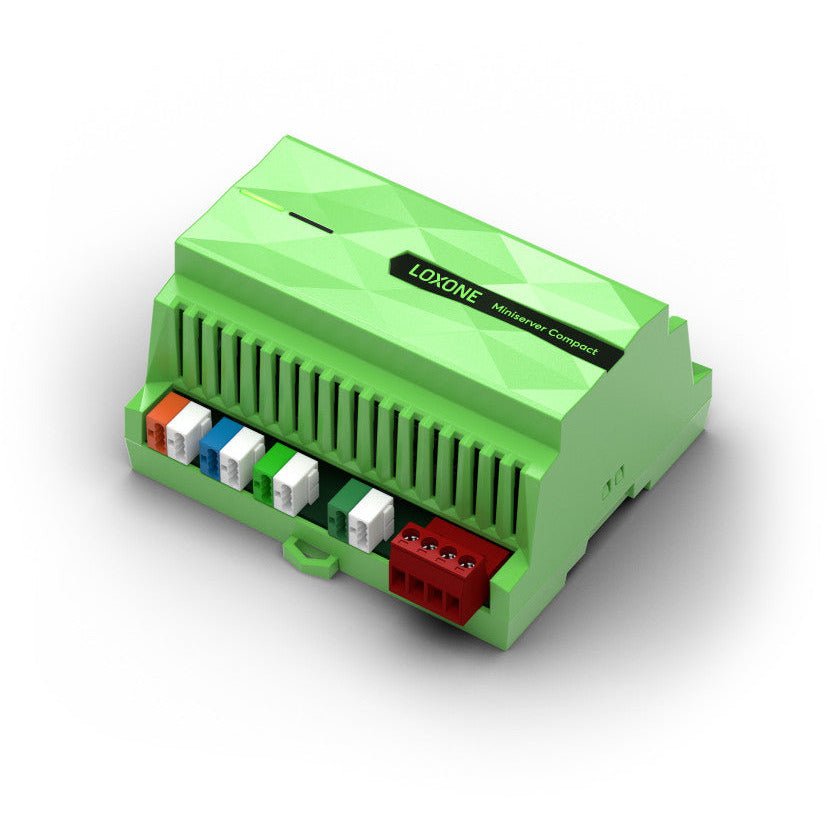

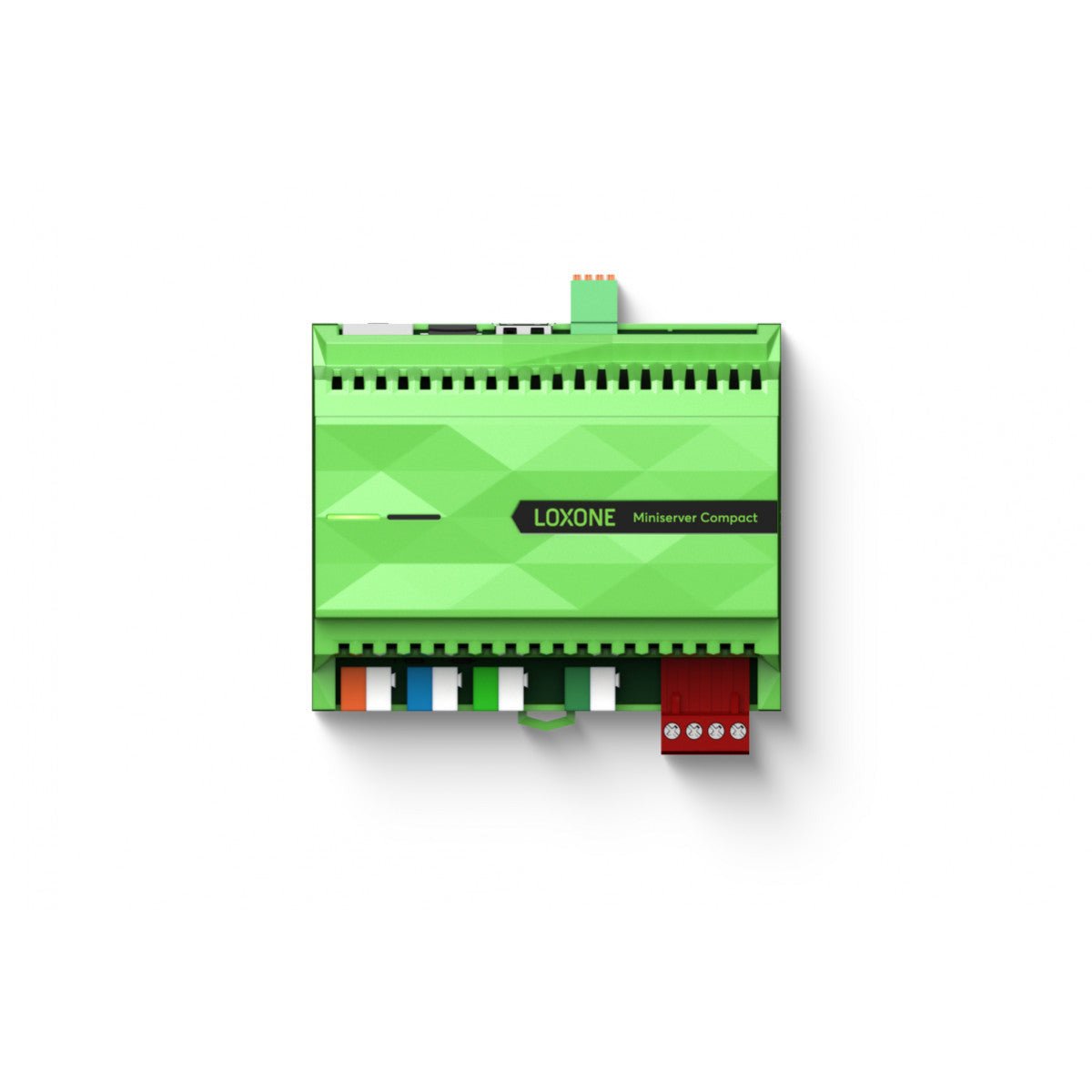

Miniserver Compact

he Miniserver Compact serves as the central control unit for all automated functions in a smart building. It includes integrated interfaces for Loxone Link, Air, Tree and Tree Turbo that are used to expand with numerous devices. The Miniserver also has built-in Audioserver capabilities. In compact size, it minimizes space required for installation yet maximizes possibilities for larger-scale buildings such as hotels.

Available for pre-order now. Expected to ship beginning 2023

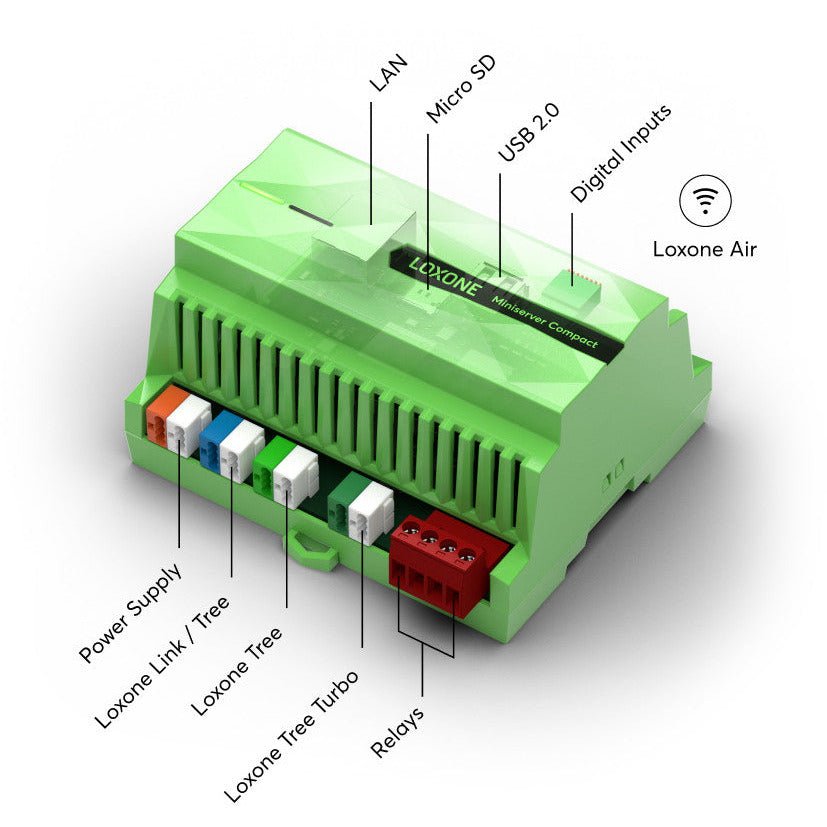

• 24VDC power supply
• Loxone Link or Tree (switchable in the software) with up to 30 Extensions or 50 Tree devices
• Loxone Tree interface (max. 50 Tree devices)
• Loxone Tree Turbo (performance interface for audio)
• Loxone Air interface (max. 128 Air devices)
• LAN interface
• USB interface
• SD card
• Space requirement: 6 units
• 4 digital inputs
• 2x 16A relay outputs (potential-free)
